Technical parameters Garda modular

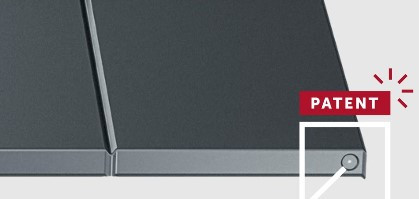

The completely flat profile of the tile is reminiscent of the calm surface of the Italian Lake Garda, hence the name of the new model. This roof is not only COMPLETELY FLAT, but also offers COMPLETE VERSATILITY of use. Thanks to its minimalist shape, it can be used on any house and in any environment, and thanks to patented solutions, it can be used in any weather conditions.

• Usable module width: 1190 mm
• Width between wave crests: 238 mm
• Effective module length: 700 mm
• Module length: 350 mm
• Embossing height: 35 mm
• Effective area of the module: 0.833 m2
• Sheet weight: max. 3.7 kg
• Minimum roof slope (recommended): 25 degrees (46.63%)

Modular roofs and accessories - Garda, completely flat!

Minimalist, elegant, smooth modular Garda metal tile.

Garda is the flattest of the two-tile panel tiles. It is the ideal roofing solution for investors who appreciate timeless style and elegance, characterized by simplicity of shapes and contours.

Simple and quick installation

The convenient size of the sheets combined with pre-prepared holes and mounting cups means that installation can be successfully carried out even by one person. High productivity (sheet coverage area: 0.833 m2) speeds up roofing work.

Pre-drilled holes and 3D calibration mounting cups

Well-thought-out mounting holes and prepared 3D calibration cups allow for aesthetic positioning of self-tapping screws and eliminate stress, and therefore prevent deformation (crushing). These elements are profiled in such a way that the modules are laid flush with the batten (resting on the batten), resulting in a very smooth, even surface.

Efficient rainwater drainage

A specially designed "comb" capillary channel, designed and created in the joint area of the modules, and combined with the shaped leading edge of the sheet, provides additional rigidity, with effective drainage of rainwater, which prevents the formation of stagnant zones.

Aesthetic module joints

The curved lower edge of the module edge at the transverse embossing improves the aesthetics of the joints and protects them from the accumulation of dirt and debris.

Special starting ventilation strip

A special starting bar that ensures effective ventilation of the entire roof slope and allows you to attach the first row of modules to it from the side of the eaves overhang.

Coatings and colors

X-MATT (50 year warranty*)
GreenCoat Crown BT

The polymer coating is manufactured by the world-class Swedish steelworks SSAB. Now even more environmentally friendly. Thanks to a unique global patent, a significant part of the traditional petroleum ingredients have been replaced with Swedish rapeseed oil. The increased coating efficiency makes the GreenCoat® high-quality steel range an environmentally friendly offer of organically coated steel for construction. We are the only company in Europe to have a written guarantee from SSAB for color repeatability. The polymer coating belongs to the category of anti-corrosion coatings that comply with the EN 10169 standard. The polymer coating ensures a long product life, with increased resistance to mechanical scratches (sandblasting) and resistance to UV radiation. The high corrosion resistance characteristics of the X-Matt polymer coating have been confirmed by tests conducted in aggressive marine and industrial environments. The minimum zinc content in the metal shell is over 275 g/m². X-Matt polymer coating is a combination of strength, reliability and beauty.
*the warranty is provided under the conditions described in the warranty sheet, subject to the warranty being registered in the Budmat system by the distributor (presentation of the warranty card with the assigned number upon registration is a necessary condition for exercising the rights arising from the warranty provided).

D-MATT Plus (40 year warranty*)

The coating is produced by the world's largest steel producer - ArcelorMittal. We are the only company in Europe to have a written guarantee from SSAB for color repeatability. The D-Matt coating provides high strength and resistance to corrosion and scratches. Here are its most important technical parameters: decorative coating thickness: 35 microns; coating adhesion (T-bend): ≤ 1 T; resistance to bending cracking (T-bend): ≤ 2 T; impact resistance: 18 J; scratch resistance (Clemen): ≥ 1.5 kg; corrosion resistance: category RC3; resistance to ultraviolet radiation: QUV test (UVA + H2O) (2000 hours). The minimum zinc content in the metal shell is more than 275 g/m². If you are looking for a roof with a beautiful, matte and grainy structure, D-Matt is for you.
*the warranty is provided under the conditions described in the warranty sheet, subject to the warranty being registered in the Budmat system by the distributor (presentation of the warranty card with the assigned number upon registration is a necessary condition for exercising the rights arising from the warranty provided).
