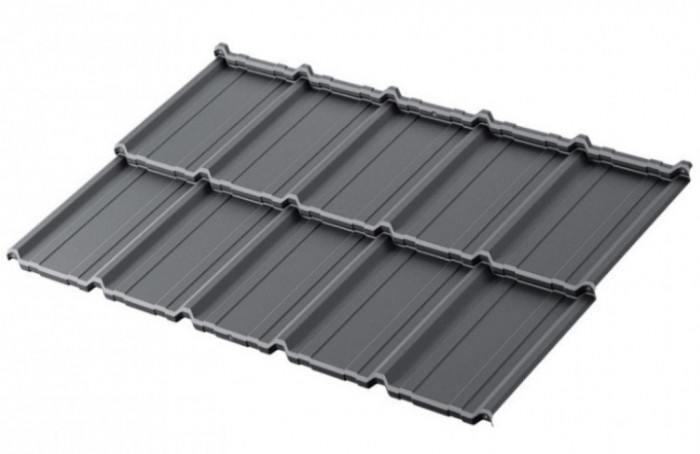

Technical parameters COMO modular

• Total width of the SSAB module [mm] – 1220
• Total width of ArcelorMittal module [mm] – 1216
• Usable module width [mm] – 1182
• Embossing height [mm] – 25
• Wave height [mm] – 10
• Total height [mm] – 35
• Total module length [mm] – 725
• Effective module length [mm] – 700
• Wavelength [mm] – 350
• Width between wave crests [mm] – 237
• Effective area of the module [m²] – 0.827
• Module weight [kg] – 3,700
• Number of effective m² on a pallet [m²] – 291,104
• Number of modules on a pallet [pcs.] – 352
• Number of layers/modules in a layer [pcs.] – 11/32
• Zinc coating [g/m²] - min 275
• Pallet size [mm] – 1235 x 800 x 850
• Pallet weight [kg] - ~1350
• Metal thickness [mm] – 0.5
• Minimum roof slope (recommended) – 9° (15.8%)

Modular roofs and accessories - Como. The future of roof aesthetics.

We have created a wonderful and modern product that completely changes the approach to roof aesthetics.

Mount as you like

Como is the first symmetrical roof module in the Budmat range that adapts to you. You can start installation from any side you like.

A roof in your style

Freedom and freedom of action is Como! Choose the roof surface to your own taste and choose the standard version or with additional embossing - microwave.

Double-curved embossing is the future of roof aesthetics

Como is a new approach to creating flat metal tiles. Its lowered profile has been double-bent, making the slope even flatter while maintaining an above-average modulus of rigidity.

Even a 50-year warranty

Innovative solutions are combined with durability and safety for many years. Depending on the chosen coating, the warranty for Como modular flat roof tiles ranges from 30 to even 50 years.

Color repeatability guarantee

Are a few modules missing? Or maybe you decided to finish building a garage? This is not a problem for us. Budmat is the only manufacturer that has a guarantee from its suppliers, SSAB and ArcelorMittal, of the repeatability of the color of the modules in D-Matt and X-Matt coatings, regardless of the batch in which they were manufactured.

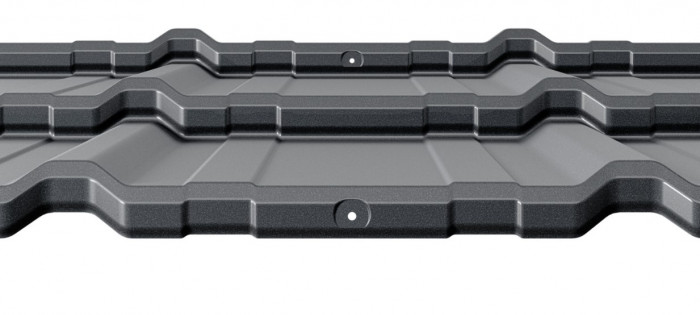

Prepared factory holes and 3d calibration - locks with stamped “cups”

This is our patent for roofing, which facilitates and simplifies installation, which saves the roofer's working time. Ready-made mounting holes allow you to connect the modules with high accuracy, and the mounting 3D calibration cups are not only a place for the screw sealing cap, but also the orientation of each module relative to each other and the elimination of any shifts relative to vertical or horizontal lines. In addition, the mounting 3D calibration cups ensure a perfect fit of the screw to the module surface, which means stronger and tighter connections.

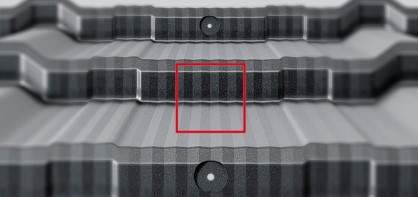

Embossing along the punching

Thanks to this application, the longitudinal joints on the roof are invisible, and the modules are additionally reinforced. This unique combination of aesthetics and durability has another practical purpose - better drainage of water from the roof.

Bent bottom edge of the module

A solution that ensures better water drainage from the roof slope, preventing its accumulation on the surface and the formation of corrosion spots. Additionally, the bend makes the transverse connection of the modules completely invisible, and the leading edge no longer requires a safe position for the roofer.

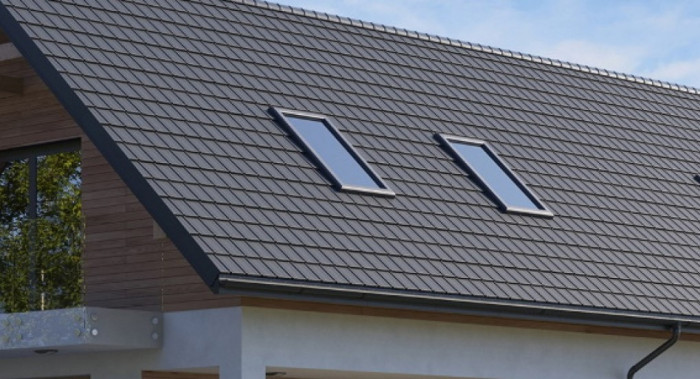

Elegant finish to your roof

Specially made for Como roofing modules, ridges with exquisite original finishes complement and once again emphasize the aesthetics of the roof. Optional elements for Como are Budmat's original innovative solution that overcomes another technological barrier in the steel processing process.

Coatings and colors

X-MATT
GreenCoat Crown BT

The polymer coating is manufactured by the world-class Swedish steelworks SSAB. Now even more environmentally friendly. Thanks to a unique global patent, a significant part of the traditional petroleum ingredients have been replaced with Swedish rapeseed oil. The increased coating efficiency makes the GreenCoat® high-quality steel range an environmentally friendly offer of organically coated steel for construction. We are the only company in Europe to have a written guarantee from SSAB for color repeatability. The polymer coating belongs to the category of anti-corrosion coatings that comply with the EN 10169 standard. The polymer coating ensures a long product life, with increased resistance to mechanical scratches (sandblasting) and resistance to UV radiation. The high corrosion resistance characteristics of the X-Matt polymer coating have been confirmed by tests conducted in aggressive marine and industrial environments. The minimum zinc content in the metal shell is over 275 g/m². X-Matt polymer coating is a combination of strength, reliability and beauty.
*the warranty is provided under the conditions described in the warranty sheet, subject to the warranty being registered in the Budmat system by the distributor (presentation of the warranty card with the assigned number upon registration is a necessary condition for exercising the rights arising from the warranty provided).

D-MATT Plus

The coating is produced by the world's largest steel producer - ArcelorMittal. We are the only company in Europe to have a written guarantee from SSAB for color repeatability. The D-Matt coating provides high strength and resistance to corrosion and scratches. Here are its most important technical parameters: decorative coating thickness: 35 microns; coating adhesion (T-bend): ≤ 1 T; resistance to bending cracking (T-bend): ≤ 2 T; impact resistance: 18 J; scratch resistance (Clemen): ≥ 1.5 kg; corrosion resistance: category RC3; resistance to ultraviolet radiation: QUV test (UVA + H2O) (2000 hours). The minimum zinc content in the metal shell is more than 275 g/m². If you are looking for a roof with a beautiful, matte and grainy structure, D-Matt is for you.
*the warranty is provided under the conditions described in the warranty sheet, subject to the warranty being registered in the Budmat system by the distributor (presentation of the warranty card with the assigned number upon registration is a necessary condition for exercising the rights arising from the warranty provided).

40 years warranty*

IDEAL-SATIN
GreenCoat Pural BT

Another coating in the offer, produced by the world-class Swedish steelworks - SSAB. BT's patented solution contains a significant amount of Swedish rapeseed oil in the coating instead of petroleum ingredients - for a more environmentally friendly environment. The optimally selected chemical composition of the coating and the use of its thickness of 50 microns ensure resistance to weather conditions, which provides excellent resistance to corrosion and UV radiation. The delicate texture makes the surface very resistant to abrasion and wear. The back of the module is covered with a two-layer coating in gray, which further enhances corrosion resistance. The coating belongs to the category of anti-corrosion coatings according to EN 10169. Excellent forming properties allow bending at temperatures down to -15 °C.
*the warranty is provided under the conditions described in the warranty sheet, subject to the warranty being registered in the Budmat system by the distributor (presentation of the warranty card with the assigned number upon registration is a necessary condition for exercising the rights arising from the warranty provided).

IDEAL-MATT
GreenCoat Pural BT

Another coating on offer, produced by the world-class Swedish steel mill SSAB. The patented BT solution incorporates a significant amount of Swedish rapeseed oil into the coating instead of petroleum ingredients - for a more environmentally friendly environment. GreenCoat® from SSAB is designed to operate in the harshest climates on earth, GreenCoat Pural BT is the benchmark for polymer-coated steel products for roofing applications where durability is most needed. It offers a high level of durability for roofing applications such as profiled metal tiles. GreenCoat PLX Pural BT is optimized for harsh operating environments, with a coating thickness of 50 microns, which successfully resists aggressive weathering, resulting in the highest UV resistance (Ruv5 for a matte appearance) and corrosion resistance class (RC5+). The delicate texture makes the surface very resistant to abrasion and wear. The reverse side of the sheet is covered with a two-layer coating in gray, which further enhances corrosion resistance. The coating belongs to the category of anti-corrosion coatings according to EN 10169. Excellent forming properties allow bending at temperatures down to -15 °C.
*the warranty is provided under the conditions described in the warranty sheet, subject to the warranty being registered in the Budmat system by the distributor (presentation of the warranty card with the assigned number upon registration is a necessary condition for exercising the rights arising from the warranty provided).
